Ferrari
Testarossa - 512 TR - F512 M
Versions

This page will describe all possible differences on 512 TRs, often related to the market or the year of production.



ABS

The early 512 TRs didn't have ABS, but it was introduced in early 1993 (near s/n 96400). This also resulted in a ABS button on the left side of the steering wheel (not present on US and Australian versions) and a ABS check light on the dashboard.

ABS button
ABS button



Logos

Early versions have the logo "testarossa" on the engine lid, but on later versions this logo didn't appear.
The change was done at assembly number 11516.

The "pininfarina" logo on the side (just in front of the rear wheel) of '92 or '93 cars was in a "classic" style, while the logo on the '94 cars was in a more modern styling.

Testarossa logo on the engine lid
Testarossa logo on the engine lid

Classic Pininfarina logo
Classic Pininfarina logo

Modern Pininfarina logo
Modern Pininfarina logo



Wheels

Special 3-piece wheels could be choosen as an option.

Optional wheels
Optional 3-piece wheels



Blinkers

The side markers on US versions (as shown below) were different than the ones on other versions, where there was just a small round indicator behind the front wheels (which can be seen on the photo above).

Blinkers US version
Blinkers on US versions




Vehicle Identification Number (VIN)

Each car made after 1980 has a Vehicle Identification Number (VIN), an unique number to identify the car. On 512 TRs, the VIN can be found on a small plate on the steering column and at the chassis in the engine room. On US versions, the VIN can also be found on a plate on the door. The VINs of 512 TR look like this:

VINMarket
ZFFLA40B0000xxxxxEuro version
ZFFLA40C0000xxxxxUK version (RHD)
ZFFLA40D0000xxxxxAustralian version
ZFFLA40JAP00xxxxxJapanese version (regular 512 TR)
ZFFLA40JPN00xxxxxJapanese version (special edition called "512 TR Speciale")
ZFFLA40S0000xxxxxSwiss/Swedish version
ZFFLG40Axx00xxxxxUS version
ZFFLM40Axx00xxxxxCanadian version

For more details about the VIN, please check the VIN Decoder.

At Euro, Swiss, Japanese and UK versions, the serialnumber is also printed on all the windows. The five-digit serialnumber is followed by three letters, which have no meaning, but which are stored in Ferrari's administrative system.

All 512 TRs will also have an assembly number, which can be found on a small plate at the right side of the engine compartment.

VIN on the steering column
VIN on the steering column

VIN plate in the engine room (Euro)
VIN plate in the engine room (Euro)

VIN plate on the doors (US)
VIN plate on the doors (US)

VIN chassis stamping
VIN chassis stamping
Assembly number
Assembly number
Window Code
Window Code



Technical upgrades

Known technical upgrades during the production:
  • Updated alternator: AC Delco replaced by Nippon Denso (1993, from engine number 32438)
  • Updated starter engine: Bosch replaced by Nippon Denso (1993, from engine number 34242)



Options

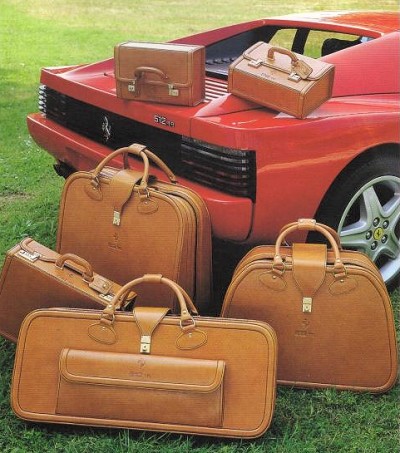

When ordering a new 512 TR, the list of "options" was quite limited. Besides a choice for the colour for the exterior, the leather interior, the dash and the carpets (see below for available colours), there were just three other options: a Schedoni leather luggage set (specially made for the 512 TR), other 3-piece wheels (as shown above) and a spare wheel (as an addition to the inflation bottle which was part of the tool kit).



Colours

The colours available on the 512 TR were:

Exterior (paint made by Glasurit)
CodeName
FER 100Bianco
FER 101/CArgento Metallizzato
FER 102Giallo
FER 300/6Rosso Corsa
FER 504/CBlu Sera Metallizzato
FER 603/CVerde Scuro Metallizzato
FER 700/CGrigio Metallizzato
FER 901/CNero Metallizzato
FER 1240Nero

Interior
CodeName
A3171Rosso
A3997Crema
A4301Light grey
A4302Grigio
A4303Light blue
A4304Charcoal
A4305Dark green
A4306Sabbia
A4307Dark blue
A8500Nero

Carpets
CodeName
80Nero
81Rosso
83Testa di Moro
84Blu
85Bruciato
